● 7" IPS screen 3G-SDI 4K HDMI camera field monitor,Full HD 1920x1200 high resolution, High brightness: 450cd/m2,High Contrast: 1200:1, Aspect Ratio 16:10, Viewing angle: 80°/80°(L/R) 80°/80°(U/D), wide 160° viewing angle makes it easy for multiple members of the crew to watch it at the same time
● Inputs:3G-SDI, HDMI; outputs: 3G-SDI, HDMI, Stereo Headphone, Speaker (built-in), support 4K HDMI input and output
● Portable small size monitor, 320g lightweight, ultra-thin design 0.87 inch thickness, compact and rugged for stabilizer,it's easy to hold in your hands
● Professional Rec.709 HD color standard, and color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
Full HD 1920x1200
Richer, Brighter, Most Colorful

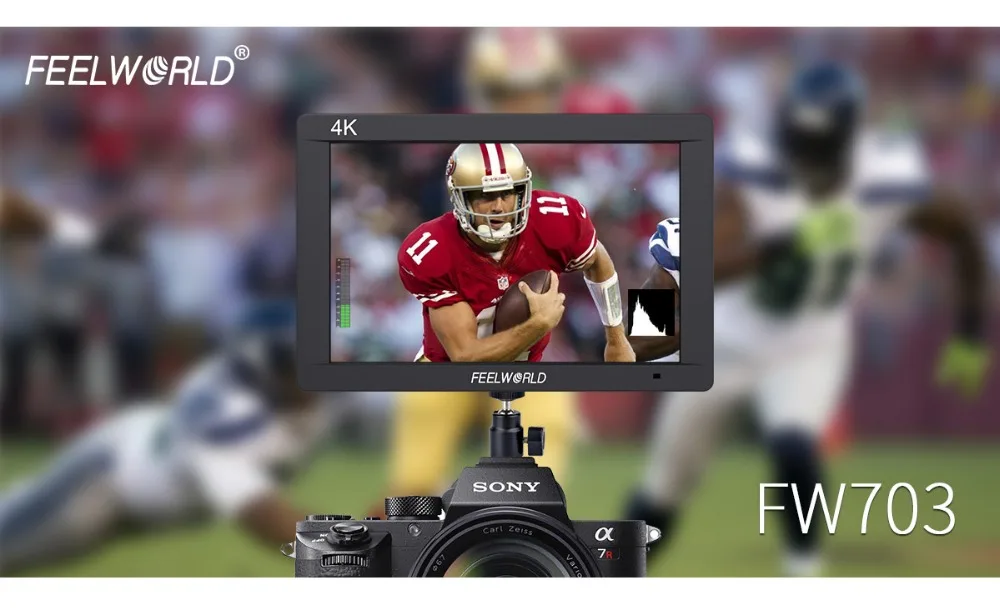

FEELWORLD FW703 4K monitor features "gold size" 7-inch full HD large screen, resolution 1920X1200, pixel density up to 323PPI. The outstanding image quality that allows you to achieve your "VISION".
Precise Color to fuel your creative flow
Richer, Brighter, Most Colorful
IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FW703 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
True Color · Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 22mm thickness, 320g lightweight, the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
Enjoy Efficiency Operation
Easy operate button design, allowing you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, can fast access to the functions you needs, focus assist, false color, exposure, embedded audio etc.
Broadcast quality 3G-SDI, 4K HDMI monitoring，use pro or consumer cameras
The compact design of the FW703 includes 3G-SDI and 4K HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 30Hz, perfect support for almost all signal.
3G-SDI and 4K HDMI Loop-out
The FW703 has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
Standard 1/4"-20 Thread Socket
FEELWORLD FW703 is equipped with standard 1/4 hole (bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane, combined with image flip function, convenient for field shooting.
Standard Hot Shoe Mount 360° Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.
For easier viewing in bright environments. FW703 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
Flexible Battery System
The FW703 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
Customers Applications and Feedback
1× Mini HDMI Cable
1× Hot Shoe Mount
1× F970 Battey Plate
1× Operation Manual
